4000K @ 480V

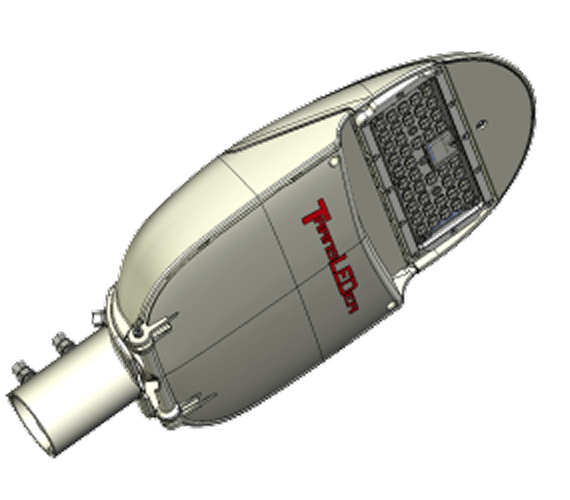

LED Roadway Lighting

Optimized for Infrastructure-Scale Projects

When municipalities, DOTs, and utilities need high-voltage roadway lighting, TransLEDer delivers fixtures that combine efficiency, durability, and ease of service. The 4000K series offers crisp, neutral-white illumination that enhances roadway visibility while minimizing glare. Available in models from 40W to 210W, these luminaires provide lumen packages from 5,900 lm to nearly 30,000 lm.

Delivering 25+ years of maintenance-free operation at full voltage.

Key Specifications

Voltage: 480 V

CCT: 4000K (Neutral White)

Power Options: 40W, 70W, 100W, 210W

Output Range: 5,900 lm – 29,000 lm

Efficacy: Up to 156 lm/W

Power Factor: ≥ 0.99

Lumen Maintenance: L95.6 @ 100,000 hrs (25+ year design life)

Vibration Rating: ANSI C136.31 Level 2 (bridge/overpass)

Surge Protection: Enhanced 10kV / 5kA

Optics: Type III, IV, V (Full Cutoff)

Ingress Protection: IP65

Impact Rating: IK10

Built Tough, Built Smart

A close-up view of a modern LED streetlight illuminated with a blue glow, mounted on a pole against a blurred dark background.

A blue circle with a white check mark in the center.

Tool-less Lever Clamping System

Open the driver chamber in seconds, no tools needed. Less time in the bucket, more uptime.

Thermally Smart Two-Chamber Design

Separates driver from light engine, reducing heat soak and extending component life.

Retrofit Fit & Aim

Slip-fitter mounts to 1.25"–2" NPS tenons with ±15° tilt (5° increments) to correct old arms and fine-tune roadway coverage.

Dusk-to-Dawn Ready

7-pin rotatable NEMA receptacle with push-to-unlock design makes photocell alignment quick and precise.

SPECIFICATIONS - 4000K @ 480V

One-module Models @ 40 W

RL-040-3M-NW-UH-D-BZ
RL-040-4M-NW-UH-D-BZ
RL-040-5M-NW-UH-D-BZ

One-module Models @70 W

RL-070-3M-NW-UH-D-BZ
RL-070-4M-NW-UH-D-BZ
RL-070-5M-NW-UH-D-BZ

One-module Models @110 W

RL-110-3M-NW-UH-D-BZ
RL-110-4M-NW-UH-D-BZ
RL-110-5M-NW-UH-D-BZ

Two-module Models @ 100 W

RL-100-3M-NW-UH-D-BZ
RL-100-4M-NW-UH-D-BZ
RL-100-5M-NW-UH-D-BZ

Two-module Models @ 190 W

RL-190-3M-NW-UH-D-BZ
RL-190-4M-NW-UH-D-BZ
RL-190-5M-NW-UH-D-BZ

Three-module Models @ 210 W

RL-210-3M-NW-UH-D-BZ
RL-210-4M-NW-UH-D-BZ
RL-210-5M-NW-UH-D-BZ

Three-module Models @ 265 W

RL-265-3M-NW-UH-D-BZ
RL-265-4M-NW-UH-D-BZ
RL-265-5M-NW-UH-D-BZ

Four-module Models @ 335 W

RL-335-3M-NW-UH-D-BZ
RL-335-4M-NW-UH-D-BZ
RL-335-5M-NW-UH-D-BZ

Ready to Put It to the Test?

Talk to a TransLEDer engineer or request a quote for your next infrastructure project.  We can also provide pilot support for testing this unit in high-failure zones.
